Label Unwinders

UCAT 3 Family of Label Unwinders

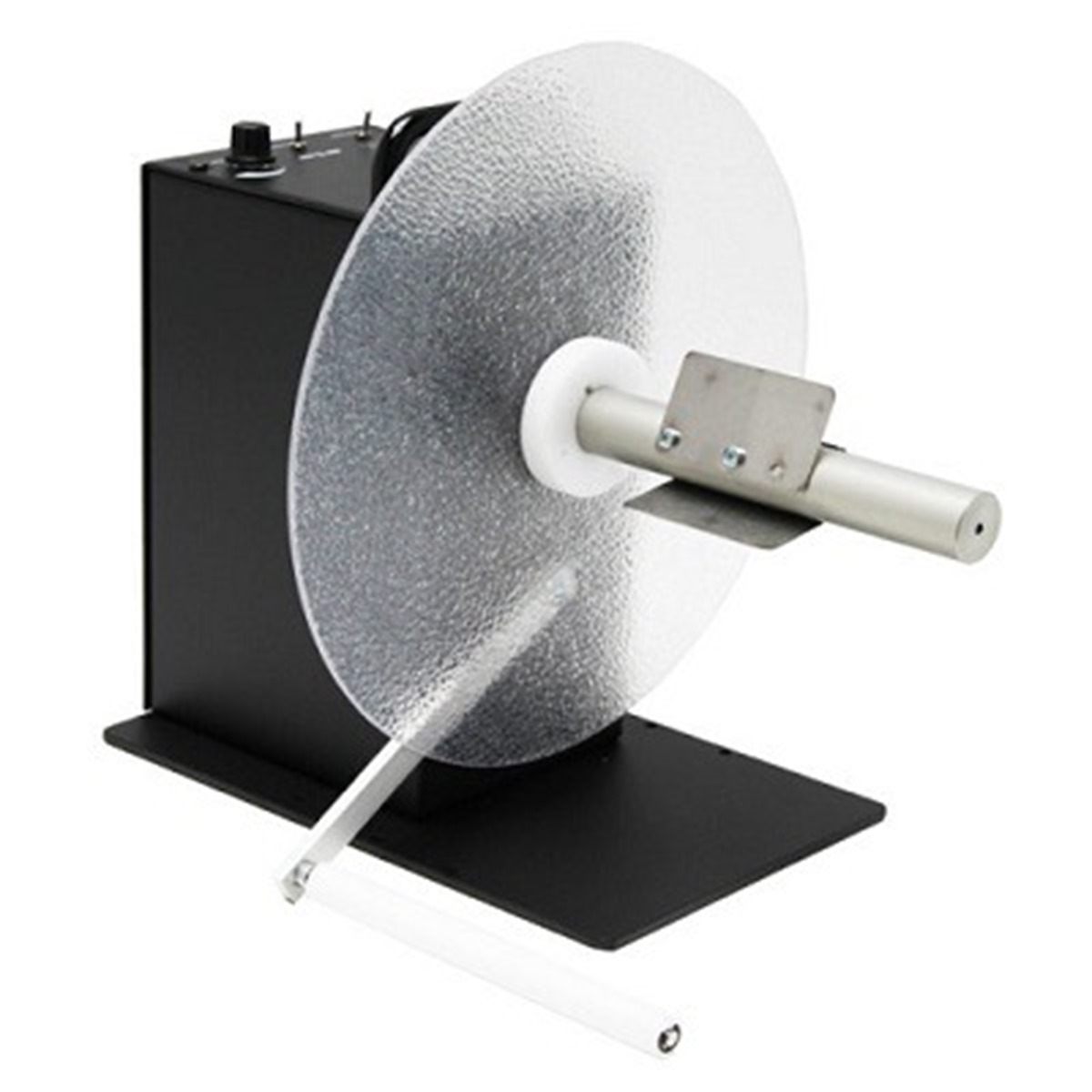

UCAT-3 Heavy-Duty Powered Label Unwinders

This powered Unwinder automatically tracks label usage and provides powered label feed at speeds up to 125 cm/sec. The UCAT3 accepts standard 76mm cores and rolls up to 300mm in diameter. 255mm width is available. It can also be used as a full-feature label rewinder without any special setup. Labelmate’s renowned Constant Adjustable TorqueTM control system allows precise adjustment of feed speeds and rewind torque. External STOP / RUN input included.

Models include:

UCAT-3-1-INCH

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 220mm
  • For 24.5mm cores
  • Speed up to 125cm/sec

UCAT-3-10-INCHES

  • Handles labels up to 255mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec

UCAT-3-ACH

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 280mm
  • Adjustable core holder from 25 to 101mm
  • Speed up to 125cm/sec

UCAT-3-CHUCK

  • Handles labels up to 270mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec

UCAT-3-STANDARD

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec
Zoomed Image
  • 1  U C A T 3  Thumbnail0

Brands: Labelmate

UCAT-3 Heavy-Duty Powered Label Unwinders

This powered Unwinder automatically tracks label usage and provides powered label feed at speeds up to 125 cm/sec. The UCAT3 accepts standard 76mm cores and rolls up to 300mm in diameter. 255mm width is available. It can also be used as a full-feature label rewinder without any special setup. Labelmate’s renowned Constant Adjustable TorqueTM control system allows precise adjustment of feed speeds and rewind torque. External STOP / RUN input included.

Models include:

UCAT-3-1-INCH

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 220mm
  • For 24.5mm cores
  • Speed up to 125cm/sec

UCAT-3-10-INCHES

  • Handles labels up to 255mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec

UCAT-3-ACH

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 280mm
  • Adjustable core holder from 25 to 101mm
  • Speed up to 125cm/sec

UCAT-3-CHUCK

  • Handles labels up to 270mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec

UCAT-3-STANDARD

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec
