Label Rewinders

UCAT Heavy Duty Label Unwinders

UCAT-S Heavy-Duty Unpowered Label Unwinders
This is the world’s least expensive professional Unwinder. It is unpowered and now has an adjustable “wearless” brake. The UCAT-S accepts up to 300 mm diameter rolls and up to 155 mm width, 76mm cores.UCAT-1 Heavy-Duty Unpowered Label UnwindersThis is the classic LABELMATE Unwinder with Adjustable Speed-Proportional Braking.Up to 300 mm diameter rolls and 155 mm width, 76mm cores. Optional 255 mm width and a 25 mm to 101 mm Adjustable Core Holder are available. Please see the table of available models below.

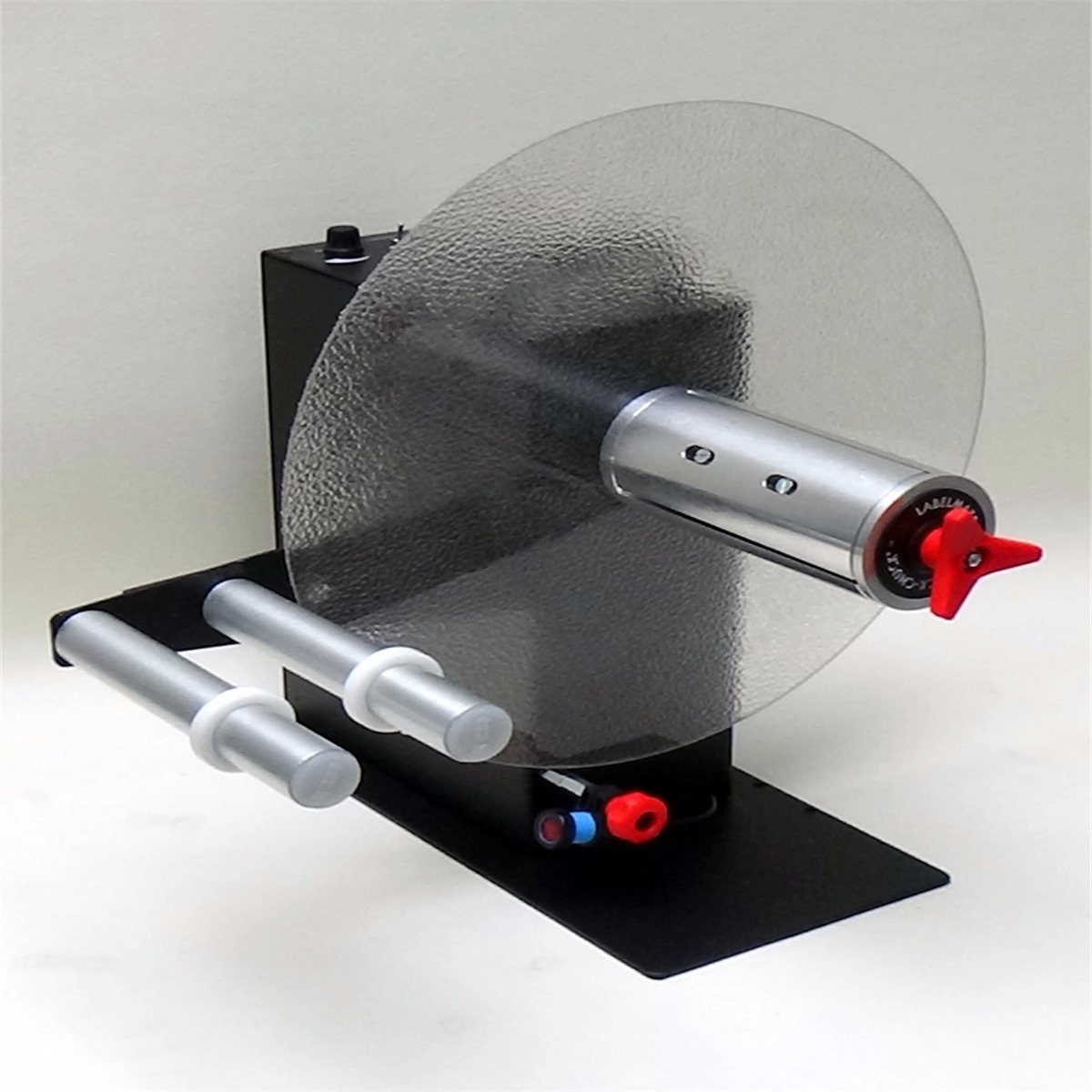

UCAT-3 Heavy-Duty Powered Label Unwinders
This powered Unwinder automatically tracks label usage and provides powered label feed at speeds up to 76cm /sec. The UCAT-3 accepts standard 76mm cores and rolls up to 300 mm in diameter. 255 mm width is available. It can also be used as a full-featured Label Rewinder without any special setup. LABELMATE’s renowned Constant Adjustable TorqueTM control system allows precise adjustment of feed speeds and rewind torque. External STOP / RUN Input included.

UCAT-40 Heavy-Duty Powered Label Unwinders
A powered Unwinder like the UCAT-3, but with an impressive 40 cm roll diameter capacity. Supplied with LABELMATE’s 76 mm “Quick-Chuck”™, the UCAT-40 gives you the ultimate label Unwinder for volume production.



Zoomed Image
  • C A T-3- L C- D400  Thumbnail0

Brands: Labelmate

UCAT-S Heavy-Duty Unpowered Label Unwinders
This is the world’s least expensive professional Unwinder. It is unpowered and now has an adjustable “wearless” brake. The UCAT-S accepts up to 300 mm diameter rolls and up to 155 mm width, 76mm cores.UCAT-1 Heavy-Duty Unpowered Label UnwindersThis is the classic LABELMATE Unwinder with Adjustable Speed-Proportional Braking.Up to 300 mm diameter rolls and 155 mm width, 76mm cores. Optional 255 mm width and a 25 mm to 101 mm Adjustable Core Holder are available. Please see the table of available models below.

UCAT-3 Heavy-Duty Powered Label Unwinders
This powered Unwinder automatically tracks label usage and provides powered label feed at speeds up to 76cm /sec. The UCAT-3 accepts standard 76mm cores and rolls up to 300 mm in diameter. 255 mm width is available. It can also be used as a full-featured Label Rewinder without any special setup. LABELMATE’s renowned Constant Adjustable TorqueTM control system allows precise adjustment of feed speeds and rewind torque. External STOP / RUN Input included.

UCAT-40 Heavy-Duty Powered Label Unwinders
A powered Unwinder like the UCAT-3, but with an impressive 40 cm roll diameter capacity. Supplied with LABELMATE’s 76 mm “Quick-Chuck”™, the UCAT-40 gives you the ultimate label Unwinder for volume production.
