Fixed Position Scanning

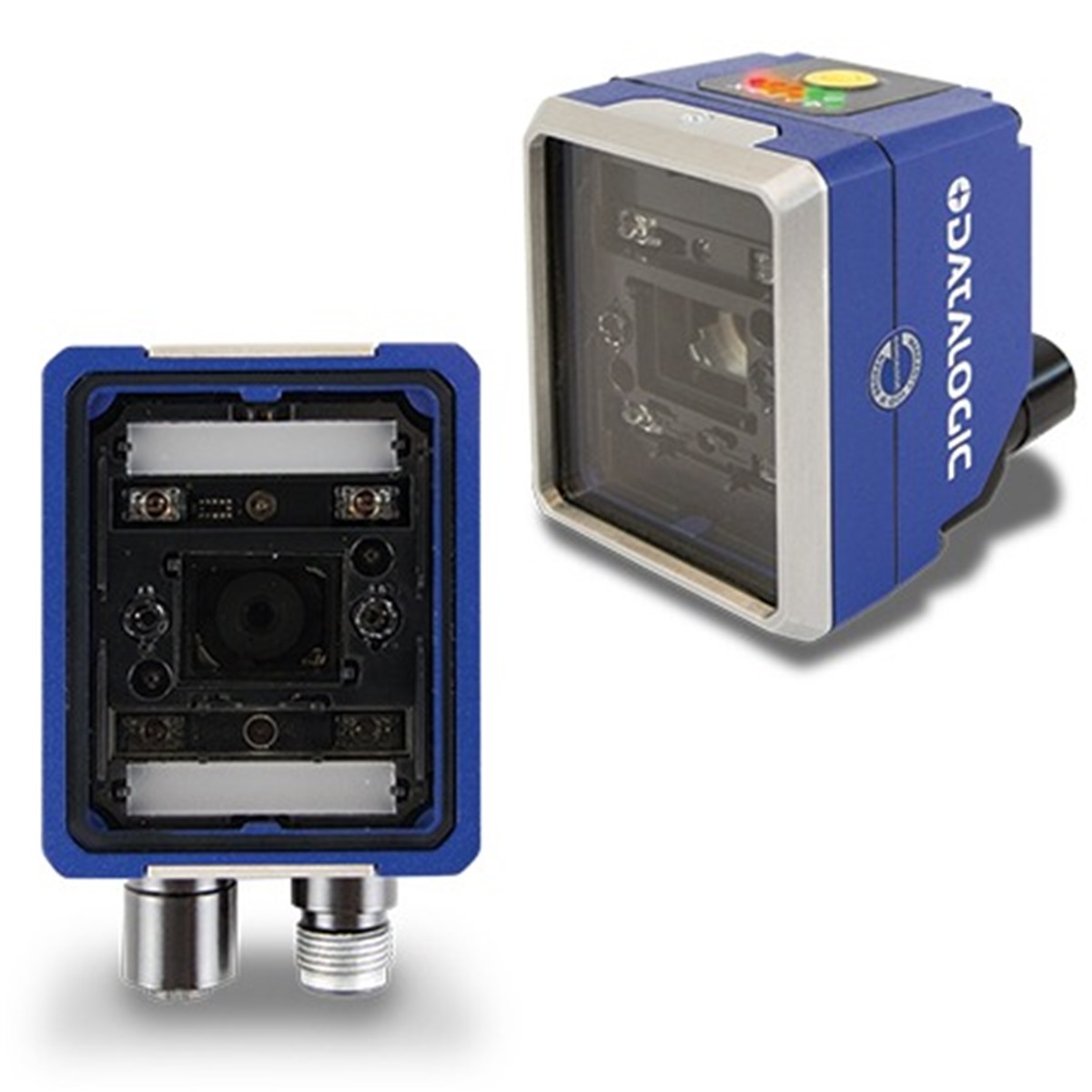

Datalogic Matrix 220

The Matrix 220™ imager is the most compact image based barcode reader capable to provide top performance with the highest flexibility. The ideal imager reader for Electronics, Automotive, Packaging and Document Handling applications.

The Matrix 220 is designed for superior performance up to 2mils code resolution thanks to a 1.2 MPixel high resolution sensor and a new image multicore processing platform. The innovative lighting solutions with an integrated flexible illumination system makes the Matrix 220 imager perfect for reading bar codes DPM marked (Direct Part Marking).

The Matrix 220 offers in a single model the embedded polarized and diffused light options resulting in optimal illumination on any type of surface. The white and red-light models are capable of solving a huge variety of applications with the best performance.
The electronic focus control allows easy remote job changing during assembly line reconfiguration and remote focus adjustment offering extreme reading flexibility.

Zoomed Image
  • P L P- M A T R I X220- L E F T- A N D- F R O N T- F A C I N G  Thumbnail0

Brands: Datalogic

The Matrix 220™ imager is the most compact image based barcode reader capable to provide top performance with the highest flexibility. The ideal imager reader for Electronics, Automotive, Packaging and Document Handling applications.

The Matrix 220 is designed for superior performance up to 2mils code resolution thanks to a 1.2 MPixel high resolution sensor and a new image multicore processing platform. The innovative lighting solutions with an integrated flexible illumination system makes the Matrix 220 imager perfect for reading bar codes DPM marked (Direct Part Marking).

The Matrix 220 offers in a single model the embedded polarized and diffused light options resulting in optimal illumination on any type of surface. The white and red-light models are capable of solving a huge variety of applications with the best performance.
The electronic focus control allows easy remote job changing during assembly line reconfiguration and remote focus adjustment offering extreme reading flexibility.
